Lit!

Native web components are a pain to build and design, mostly because the API is complicated and naive implementations can have less than stellar performance. Lit is a library, originally developed by Google, that provides an alternative API for dealing with the web component lifecycle, as well as a scheduling system that decorates your existing DOM with comment fields that provide for all of the performance of a virtual DOM without any of the memory overhead. Lit also provides excellent ergonomics for defining properties, attributes, accessors to component internals, as well as powerful idioms for defining events, boolean and string passing, and passing complex JavaScript objects from one component to another.

The components here were originally developed for a similar library, Minze, which was one of several such libraries with similar intent. They, and an accompanying article, were developed by Sergej Samsoneko and published at Codrops.

Minze never quite took off; at the moment, Lit, FAST, and Svelte seem to be front-runners in the race to "make life easier for component developers." I needed some basic practice (and you probably do as well), so I decided to see how quickly I could translate Sergej's work into Lit.

It took about half an hour. I even had macros (thank Gnu for Emacs) that would automatically re-write most of the code for me. Oh, by the way: No AI was involved in developing this code. Just human talent.

See the completed project.

View the project repository at Github

The first thing Sergej developed was the accordion, a variant of the <summary>/<details> component with a few nice visuals. So let's do the same thing:

Accordion

Here's how we use an accordion:

<sh-accordion>
  <div slot="summary">Stats</div>
  <div slot="details">Bacon ipsum dolor amet frankfurter pork loin filet mignon pastrami, pork
  prosciutto biltong strip steak sirloin cow shoulder spare ribs andouille.</div>
</sh-accordion>

First, all web components have a dash in their name.

Second, most web components have a shadowDOM, which is a private DOM context with its own CSS and its own scope. The open and close tags of a component define that scope, a sort of border between what is inside and what is out. Browsers provide all HTML tags with a rectangle of rendering space, a place in which the component is drawn, and when a component is rendered, that rectangle is filled with the contents of the shadowDOM, hiding what you see in the lightDOM or, with slots, moving them around.

A slot is a place defined in the web component where the content named to it will be placed. They're a convenient way to provide content from the parent DOM context and control where, visually, in the component that content will appear. Despite this placement, they're also still within the parent DOM context and get they're styling from that context, not the CSS of the web component's shadowDOM.

(I will use the phrase "parent DOM context" where most tutorials will say "the lightDOM", because I find that decpetive and confusing. Almost all HTML can be nested in other HTML and still be semantically correct; there's no reason to expect that the parent DOM context for a web component will always be the top-level LightDOM context of the browser page.)

Our accordion will have a single HTML attribute, similar to the "checked" attribute of an input checkbox; we want to know if the component is open or closed. And we want to define the name:

@customElement("sh-accordion")
export class ShAccordion extends LitElement {
    @property({ type: Boolean, reflect: true })
    open = false;
}

This is the most common idiom for defining a Lit element and an attribute on that element using Typescript. We've created a LitElement class (which extends the browser's native HTLMElement), decorated it with the instruction that says "Register this as sh-accordion with the browser", and defined a single property, open. The arguments to the @property decorator tell it that the attribute is just a name without an accompanying value, and that when the propery is changed within the component, the name should be added or removed from the host tag, the sh-accordion tag.

We have to render this thing, so let's do that. We are going to add this method to our ShAccordion class:

    render() {
        const toggleOpen = () => {
            this.open = !this.open;
        };

        return html`
            <div class="title" @click=${toggleOpen}>
                <slot name="summary"></slot>
                <svg xmlns="http://www.w3.org/2000/svg" width="24" height="24" viewBox="0 0 20 20"  fill="currentColor" class="arrow">
                    <path
                        fill-rule="evenodd" clip-rule="evenodd"
                        d="M5.293 7.293a1 1 0 011.414 0L10 10.586l3.293-3.293a1 1 0 111.414 1.414l-4 4a1 1 0 01-1.414 0l-4-4a1 1 0 010-1.414z"
                    />
                </svg>
            </div>
            <slot name="details"></slot>
        `;
    }

A couple of things to note. First, identify where the slots are. The content from our first example will be placed where they are named.

Next, note the @click syntax used to identify an event. The @ symbol uses the eventName, and is not limited to browser-native events; if you add your own event to the system, like "user-error", you can @user-error and it will catch that error if the error passes through this component during the bubble phase.

Third, note where we've placed the accompanying function. It's inside the render() function, because we want it to know that this means "this component instance". This is a short and simple event handler, but it does mean that the browser will create a new copy of this function for every render on the screen, every time. Alternatively, you can use function binding techniques or class-based arrow functions to create a new copy of this function with the right reference only once, when the component is rendered.

But the semantics are trivial. "When the user clicks the summary, toggle the value of this.open." That, in turn, causes Lit to re-render the sh-accordion tag with the attribute open added (or removed, if it was present), because we made open be reflect: true.

But how does it show the details? That's a bit of CSS magic. All Web Components have their own private CSS, unrelated to the content around them. That presents a huge challenge in making large component collections look harmonious, and a lot of engineering effort is being spent right now figuring out how to make that all work.

But adding CSS to Lit is pretty easy. I'm going to avoid most of the CSS, but let's see how the open feature works. At the top of our class, we're going to provide the CSS:

@customElement("sh-accordion")
export class ShAccordion extends LitElement {
    static styles = [css`
        ::slotted([slot="details"]) {
            display: none;
            padding: 1rem;
        }

        :host([open]) ::slotted([slot="details"]) {
            display: block;
        }
    `];

Importantly, the styles field is static. All instances of our accordion always get the same CSS. In Sergej's original, the value of display was manipulated dynamically, and every instance of accordion had its own dynamically allocated CSS. This is fine for small components, but if you have hundreds of them and they have fairly large CSS definitions, this can waste memory and be a performance hit.

Instead of fiddling with the CSS, I've taken a more modern approach and decided to let the browser handle the magic.

The ::slotted([slot="details"]) pseudo-element allows us to reach up to the slotted details and style it. The reach of ::slotted() is limited; we can't reach into the details itself with CSS, and lots of combinators don't work with ::slotted() (and it's reach down equivalent, ::part()), but for our purposes this is all we need. This starts off saying that the the default case is "don't show slot="details".

But then, I have the :host([open]) ::slotted([slot="details"]) clause, which says "If the host tag has an attribute named open present, use this rule instead." Which now displays the details.

Elision!

Sergej's tutorial does similar things with the sh-switch and sh-card components. I'm going to skip most of the pedagogy with those two, but I'll focus on a couple of places where things are different.

In sh-card, there's an attribute named top-line, but dashes aren't viable JavaScript names. Minze handles the translation automagically, but Lit requires a declaration to go with its more fine control of the properties', uh, properties. So we can declare the variable name completely independent of how its associated attribute appears in the HTML with an argument to @property:

    @property({ type: String, attribute: "top-line" })
    topLine?: string;

In sh-switch, we have to make the whole switch, not just the little button for that switch, be reactive. To handle that, we will need to add an event handler to the constructor(), such that it effects the entire component, and has a lifespan as long as the component is present on-screen:

    constructor() {
        super();
        this.addEventListener("click", () => { this.active = !this.active; });
    }

Just as there are different ways to define an event handler, there are different places to define an event listener. Here, we just want to handle the click, so we've put it on what JavaScript calls this and CSS calls :host. The most common way is to use the @eventName syntax to capture events on elements within the component.

If you ever need to handle events in a dynamic way, or listen for events from outside the component, you would use the connectedCallback()/disconnectedCallback() lifecycle pair to add and remove those event listeners as needed. Imagine a pop-up that needs a "if the user clicks outside this area, dismiss the pop-up." You would need to use this technique to attach event listeners to window for clicks outside the pop-up component, and remove them once they've done their job.

Modification

This was a fun exercise, for me at least, in updating and modernizing something that already feels pretty modern. Sergej's work is outstanding, and I tried as faithfully as I could to reproduce it. I have made one very opinionated CSS change, replacing almost every instance of pixel-based sizing with rem-based sizing.

The reason for this can be seen in the screenshots below. I'm... old. I'll be 60 in less than a year. I wear glasses when I write code. Someday I'm going to have to tell my browser that I need the default font size to be 24px, rather than the "default" default of 16px.

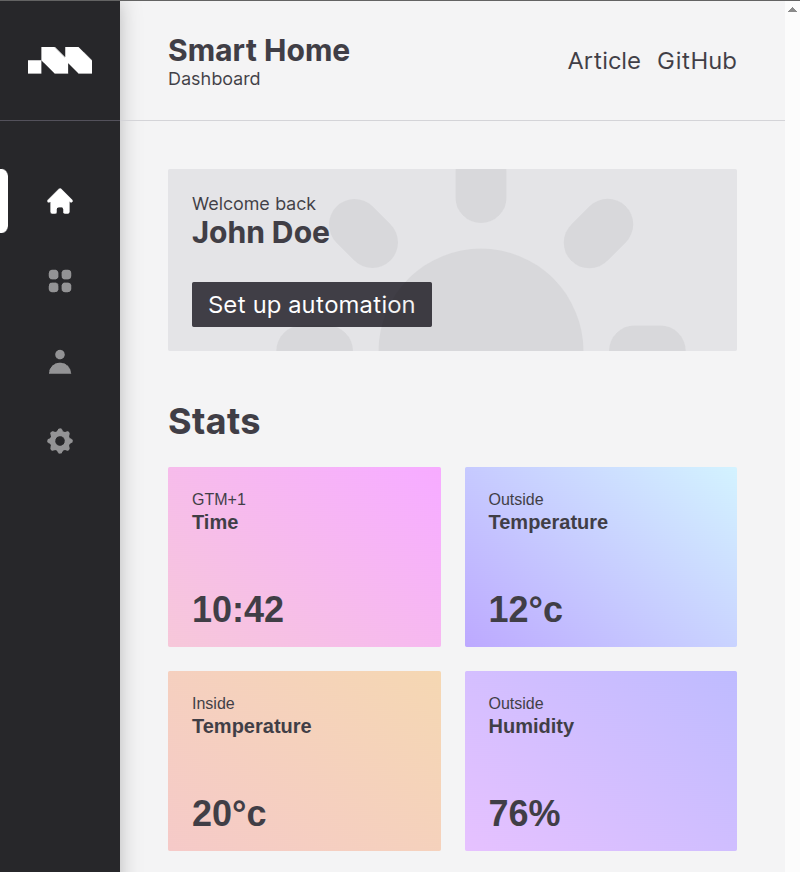

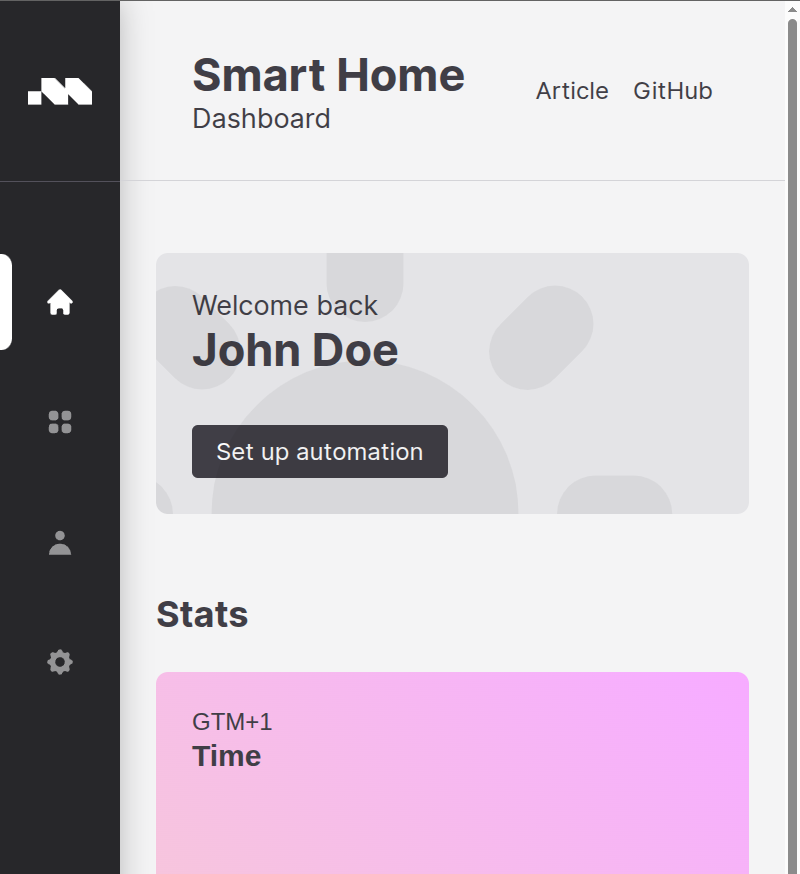

On the left is Sergej's pixel-based version when the default font size is 24px. It's completely unresponsive to my request for a disability accomodation. It's locked down to 16px no matter how hard I work at it. On the right is the REM-based version. It sizes correctly, scaling smoothly in a way that lets the render engine and CSS fit everything on the page. (Using the browser's "zoom" feature often creates horizontal scrolling.) With the recent arrival of container queries and utopia scaling, I expect most websites to become both evermore stylish and accessible at the same time.

Conclusion

Creating a web component isn't hard. There's a lot to master, but it's no different from mastering HTML and CSS and JavaScript anyway, and the lessons learned are applicable everywhere.

This is obviously a static demo. For a real application, you would have to define a top-level state, and from where each component gets its data. Lit supplies both Context and Signals, has plug-ins for Internationalization, and much much more. It's a powerful collection of libraries, not a framework, and mastering it will involve actually learning how the Web Platform works, rather than letting the framework hide it all away from you. The reward is a much more malleable web, one that can dance.
